Specialized in microwaves for more than 28 years and present throughout Europe, we are close to your needs, to provide you with high quality and technical products, at the forefront of innovation with ISO 9001/2015 qualified processes
Download our product catalog & solutions !
Selection guide
Our R&D department is constantly evolving to provide you with microwave products that are always at the forefront of innovation and of high quality in order to guarantee the success of all your projects.
Many product lines available
Tech-inter offers a complete catalog of high-end microwave solutions:
- Connectorized microwave amplifiers and SMD up to 67 GHz
- Microwave coaxial RF & connector
- Microwave & cables
- Connectorized mixers and CMS
- Diodes, Single layer capacitors
- Microwave measurement systems
- Connectorized and CMS switches
- Microwave modules on request
- Wave guides
and many others to discover on our website.
• Available series:
- SMA (DC-27 GHz)
- 2.92 mm (DC-40 GHz)
- 2.4 mm (DC-50 GHz)
- 1.85 mm (DC-65 GHz)
• Low Insertion Losses
• Low RF leakage rate
• High Temperature
• Low VSWR
• Frequency : up to 50 GHz
• Max VSWR: 1.25
• Geometry : 45° Angle
• Impedance : 50ohm
• Connector Series: N, SMA, 2,92mm, 2,4mm, TNC
• Gender:
- Male to male
- female to female
- male to female
• Accepts pin size :
- ϕ0.46mm - ϕ0.23mm
- ϕ0.30mm - ϕ0.38mm
- ϕ0.51mm
•Configuration :
- 2 hole flange
- 4 hole flange
•Connector Series :
- 1.0mm - 1.85mm
- 2.4mm - 2.92mm
- SMA
•Frequency : up to 110 GHz
•Max VSWR : 1.25
- A number of bandpass and bandstop filters have been added
- The filters are available in the ideal technologies in "line" and "microstrip"
- Multiconductor lines are now available in microstrip and stripline technology.
- Visualization of the multiconductor structure and its segmentation.
- Impedance calculator has been improved.
- "Best in Class" Loss Tangent
- Exceptional Thermal Management
- Dk Stability Across a Broad Temperature Range
- Enhanced Antenna Gains/Efficiencies
- Excellent Adhesion to Very Low Profile copper
- Non-reinforced laminate
- Exceptional low electrical loss for microwave
applications
- Excellent adhesion to Very Low Profile Copper Foils
- Stable dielectric properties vs. temperature
& frequency
- Dimensionally stable for multilayer applications
- Isotropic Benefits
- Well suited for laser based Microvia formation
- High DK for RF circuit size reduction
- Excellent dimensional stability
- Tight DK tolerance (10.2 +/- 0.3)
- Low 0.0025 loss tangent (@ 10 GHz)
- High thermal conductivity for enhanced thermal
management
- Excellent adhesion to smooth coppers
- Excellent price/performance ratio
Frequency & Max VSWR : 110GHz VSWR1.4
Geometry : Straight
Impedance : 50ohm
Available in 3 different types :
Frequency & Max VSWR : 67GHz VSWR1.25
Geometry : Straight
Impedance : 50ohm
Availables in 4 differents types :
- 110/230 VAC compatible
- 70 dB filter suppression at 1-10 GHz
- CE complient
- Panel mountable
- Switch mode: SP4T latching, terminated
- DC – 6 GHz RF frequency range
- Insertion loss < 1.9 dB up to 3 GHz
- 63 dBm IP3
- +30 dBm maximum input power
- Flexible supply voltage: 5-45 VDC
- <100 μs switching time
- Return loss (50 Ohm reference) 13 dB typical VSWR = 1.6
- Output phase deviation, from nominal <±10° typical
-Output amplitude deviation
- from nominal <±3 dB Nominal is equal amplitude in the 8 output ports
- Insertion loss <13 dB 9 dB of total 13 dB is splitting loss (1:8)
- Isolation >13 dB Measured as isolation between input ports
- 100 MHz to 8 GHz frequency range
- Up to 110 dB attenuation
- Attenuation steps of 1 dB
- Each channel individually calibrated
- 0.5 dB attenuation accuracy (up to 6 GHz)
- 2 W maximum input power
- 19” rack mountable, 1U height
- Typical phase noise -140 dBc/Hz at 1000 Hz offset
- 10 MHz fundamental reference clock noise clean-up
Available with standard output frequency starting at 100 MHz up to 128 MHz:
- Excellent coupling flatness and directivity
- High input power capability up to 45 watts CW
- Small, surface mount footprint of only 0.5” x 0.375”
Multi-octave frequency bands available between 10 and 840 MHz :
- 18.1 dB Gain at 3500 MHz
- 18.0 dBm P1dB at 3500 MHz
- 34 dBm Output IP3 at 3500 MHz
- 0.59 dB NF at 3500MHz
- MTTF > 100 Years
- Single Supply: +5 V
- Lead-free/Green/RoHS-compliant Package
- Package Type: TDFN8
- 18.4 dB Gain at 2500 MHz
- 19.0 dBm P1dB at 2500 MHz
- 36 dBm Output IP3 at 2500 MHz
- 0.42 dB NF at 2500MHz
- MTTF > 100 Years
- Single Supply: +5 V
- Lead-free/Green/RoHS-compliant Package
- Package Type: TDFN8
- 19.4 dB Gain at 2000 MHz
- 20.5 dBm P1dB at 2000 MHz
- 36 dBm Output IP3 at 2000 MHz
- 0.37 dB NF at 2000MHz
- MTTF > 100 Years
- Single Supply: +5 V
- Lead-free/Green/RoHS-compliant Package
- Package Type: TDFN8
- 14.8 dB Gain at 2000 MHz
- 25.0 dBm OIP3 at 2000 MHz
- 12.5 dBm P1dB at 2000 MHz
- Gain flatness = 4.2 dB at 950 - 6500 MHz
- Single Supply (VD, volts): 3.0
- Lead-free/Green/RoHS-compliant Package
- Package Type: SOT363
- 19.8 dB Gain at 1500 MHz
- 20.5 dBm P1dB at 1500 MHz
- 36 dBm Output IP3 at 1500 MHz
- 0.31 dB NF at 1500MHz
- MTTF > 100 Years
- Single Supply: +5 V
- Lead-free/Green/RoHS-compliant Package
- Package Type: TDFN8

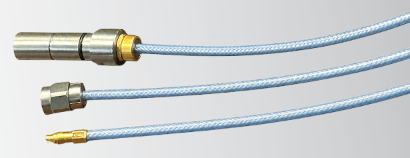

Available in three different series, .090, .120 and .141 inch diameter, with a frequency range of DC -67 GHz
P1dB = 20.5 dBm @ 1.5 GHz
Integrated LNA On/Off Control
OIP3 : 36.0 dBm @ 1.5 GHz
Gain : 20 dB @ 1.5 GHz
After a successful audit in December 2020, Tech-inter's ISO 9001/2015 qualification was renewed
0.42 dB NF at 2500MHz
Cross references vs Hittite Microwave
New range 100% equivalent to SW
Available in SMA, 3.5 mm, 2.92 mm, 2.4 mm series
TECH-INTER at USHUAIA
Tech-inter was in Chile at Observatoria A.L.M.A
ALMA is an astronomical interferometer of 66 radio telescopes in the Atacama Desert of northern Chile, which observe electromagnetic radiation at millimeter and submillimeter wavelenghts. TECH-INTER participates throughout IRAM.
TECH-INTER was at COTOPAXI volcano in equator

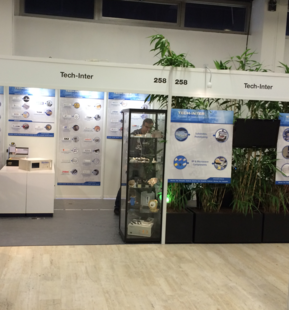

TECH-INTER was present at the show RF & Microwave
TECH-INTER was present at the show IRMMW-THz 2019
TECH-INTER was present at the show RF & Microwave
Tech-inter alaways active even at the top of Mont Blanc
