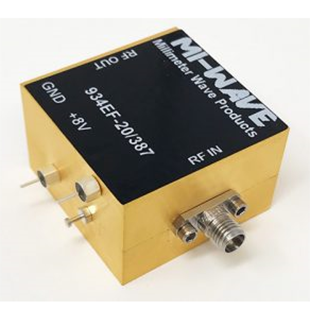

Active Multiplier Chain (AMC)
The series AMC line of active multipliers featuring Millitech technology extends the range of sources from 7.5 to 20 GHz coaxial to the complete millimeter-wave spectrum from 26 to 140 GHz.
Multipliers, Doubler, Frequency Extenders
Mi-wave multipliers offer moderate conversion gain with output frequency covering 18 to 140 GHz in six waveguide bands.
The X2, X3, X4, and X6 are offered as standard multiplication factors.
The input power requirement for these multipliers is +5 to +10 dBm.
While SMA or K female coaxial connector is equipped for input and waveguide for output interface, waveguide input is available as an option for U, V, E, and W Band multipliers.
